|Software apps and online services:|
|Hand tools and fabrication machines:|
- Fidget Spinner
- Bluetooth enabled computer
- LightBlue Bean: https://www.adafruit.com/product/2732
- CR2032 Coin Cell Battery: https://www.sparkfun.com/products/338
- GarageBand (or other BLE MIDI controlled software)
- Arduino version 1.6.8: https://www.arduino.cc/en/Main/OldSoftwareReleases
- LightBlue Explorer: https://itunes.apple.com/us/app/lightblue-explorer-bluetooth-low-energy/id557428110?mt=8
For this project, you will need to use an older version of the Arduino IDE (1.6.8) in conjunction with the "Bean Loader" from Punch Through, to load the sketch onto the LightBlue Bean.
See the provided links on the "Materials" step.

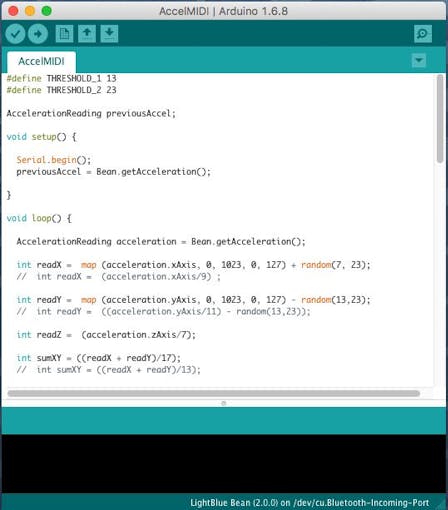

Download and unzip this sketch. Open it in version 1.6.8 of the Arduino IDE

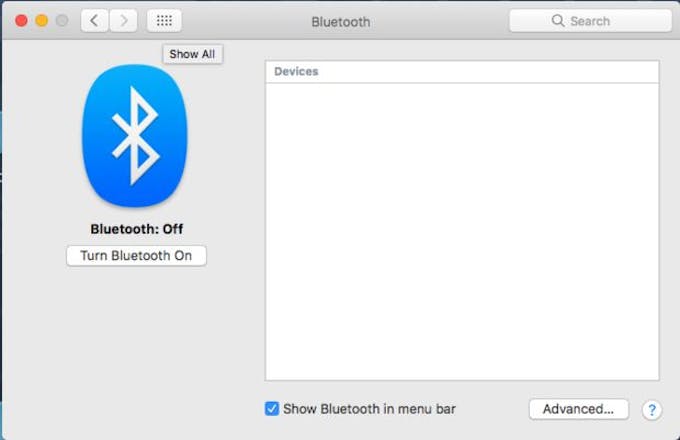

Turn on Bluetooth in your System Preferences.
Open the Bean Loader, and when it asks you to Associate with Arduino, make sure you choose Arduino 1.6.8 - if you have multiple versions of Arduino on your computer.
Open Arduino 1.6.8. Set the Board to LightBlue Bean+ (2.0.0). Set the Port to /dev/cu.LightBlue-Bean. Set the Programmer to Bean Loader.
Click the arrow at the top of the Arduino window to compile and upload your code to the Bean Loader.

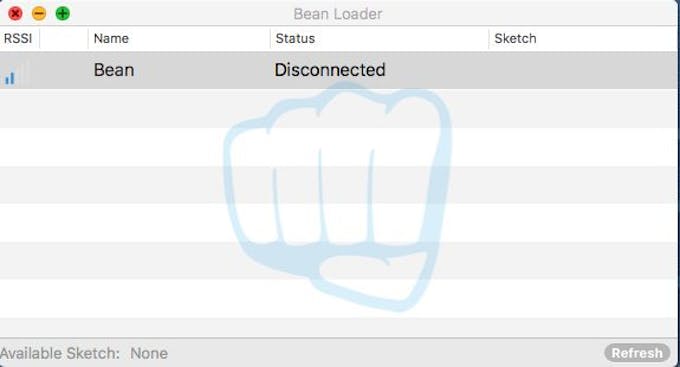

In the Bean Loader, connect to your Bean. Right click on the name and choose "Program Sketch".

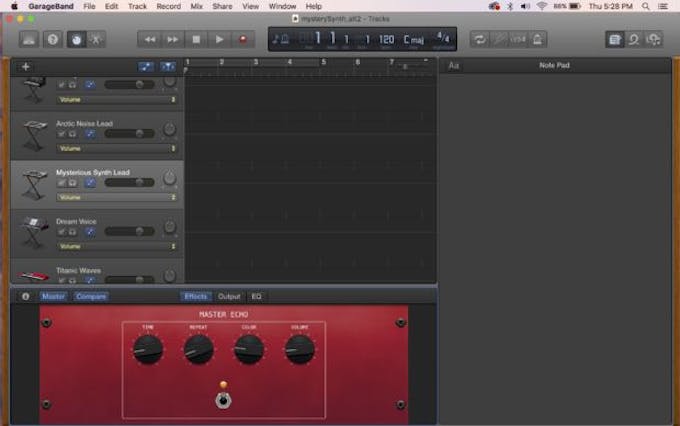

Download, unzip, and open the GarageBand file.

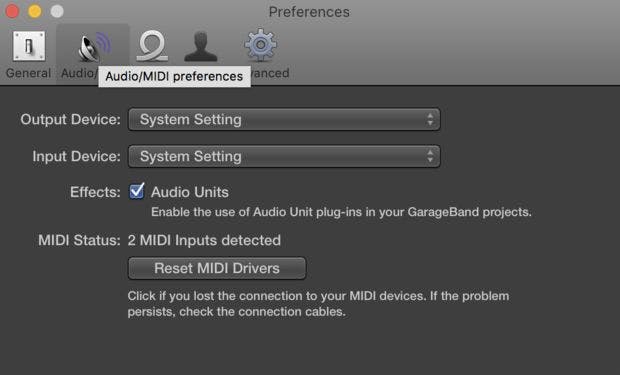

Take note of the MIDI preferences within the GarageBand, which need to be reset occasionally, in order for the LightBlue Bean to connect and send its MIDI signals via BLE to the application.
Adhere LightBlue Bean with velcro to the Spinner. Verify connectivity to GarageBand. If you are using an iOS platform device, the LightBlue Explorer app is helpful in discovering and interrogating nearby BLE peripherals (such as the Bean).
Try having the bean attached at different angles to the fidget spinner. Try spinning in different directions and speeds. Experiment with different instruments within GarageBand.
You can peruse this gist of the AccelMIDI sketch, and check out the commented out lines, which can provide hints of possible values to play with.
Try different (BLE enabled) MIDI instruments, such as Animoog on iOS.
